Hybrid servo pumps
ATENTED HYBRID SYSTEM for pressure intensification through a servomotor and an innovative hydraulic system with very high efficiency and energy savings up to 45% than traditional hydraulic intensifier systems.
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.
ServoTM
The new SERVOTM with new improved efficiency and safety firmware, is an innovative High Efficiency (90%) HYBRID Servo Intensifier Pump with a PATENTED progressive openings hydraulic system able to generate a pressure up to 4.150 Bar. The Numerical Control synchronizes the working pump cycles ensuring 37% energy saving compared to a traditional oleo-dynamic intensifier pump powered by asynchronous motor.
| Brushless SERVO motor | 27 kW |
| Water consumption | 0,9 GAL/min (3.7 lt /min) |
| Orifice Size | 0,014" (0.35 mm) |
| Max. working pressure | Fino a 4.150 Bar 60 KPS (Up to 4.150 Bar) |
| Efficiency | ≥ 90% |
| Hybrid Intensifier System | PATENTED hydraulic system with progressive opening valves |
| Power Consumption(head closed) | 0 kW |
| Total energy saving (compared to traditional idraulic system) | 14kW/h = 37% (27% full load savings + 10% cicles saving with head closed) |
| Oil tank | 20 lt (5 GAL) |
| Low noise | < 78 dB |
| Reduced overall dimensions | 6’ 1/2 x 2’ x 4’1/2 (1.900 x 600 x 1.377 H mm) |

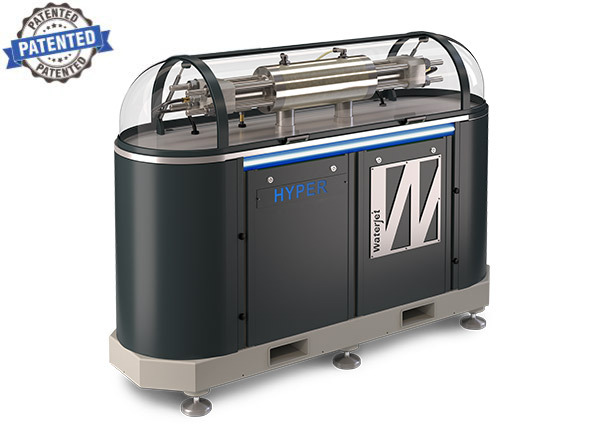

HyperTM
The new HYPER™ with new improved efficiency and safety firmware, is an innovative High Efficiency (85%) HYBRID d Servo Intensifier Pump with a PATENTED progressive openings hydraulic system able to generate a pressure up to 6.500 Bar. The Numerical Control synchronizes the working pump cycles ensuring 45% energy saving compared to a traditional oleo-dynamic intensifier pump powered by asynchronous motor.
| Brushless SERVO motor | 29 kW |
| Water consumption | 2.5 lt /min (0,7 GAL/min) |
| Orifice Size | 0.25 mm (0,010") |
| Max. working pressure | Fino a 6.500 bar 95 KPSI 95 KPSI (Up to 6.500 bar) |
| Efficiency | ≥ 85% |
| Hybrid Intensifier System | PATENTED hydraulic system with progressive opening valves |
| Power Consumption(head closed) | 0 kW |
| Total energy saving (compared to traditional idraulic system) | 20 kW = 45% (35% full load savings + 10% cicles saving with head closed) |
| Oil tank | 20 lt (5 GAL) |
| Low noise | < 78 dB |
| Reduced overall dimensions | 1.900 x 600 x 1.377 H mm (6' 1/2 x 2' x 4'1/2) |
