High productive hydrofinish system
Waterstone WS 122/160
The equipment is able to texture all stone materials by water only.
Request information
Download brochure
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.
E-WATERSTONE Details
Rotating, straight nozzle body for even finishing or decorating of shapes.
Electrical direct driven high pressure pump up to 2.500 Bar (36.000 Psi).
Opt 1:
122 kw with 28 lt/min (7 gal/min)
Opt 3:
160 kw with 40 lt/min (10 gal/min)

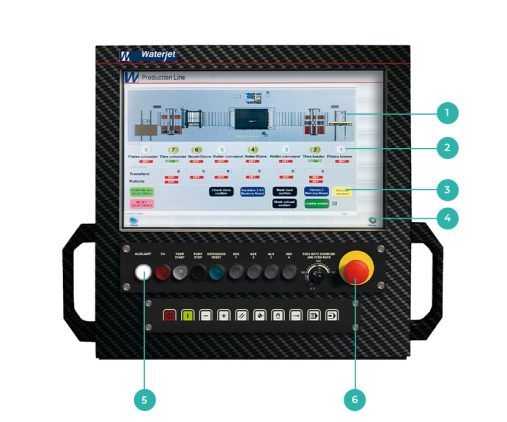

Machine and application HMI
1. System lay out
2. Equipment and working process selection
3. Customized parameters selection
4. General menu for material selection
5. Main Switch Board
6. Emergency Switch
Features
| WATERSTONE WS 122 / 160 | |
|---|---|
| Net Cutting Area | X = 3.300 mm (11') Y = 2.000 mm (6,5') Z = 200 mm (8") |
| Inner Table Working Area | 5.620 mm x 3.400 x h 2.330 mm (19' x 6,5' x h 4') |
| Overall Dimensions | 4.000 Kg (9.000 lb) |
| Pump Power Opt. 1 | 165 HP 122 kW |
| Pump Power Opt. 2 | 220 HP 160 kW |
