Waterjet Corporation's Gourmet Line: for cutting fresh and frozen food products
MAGNIFICA: the high productivity food cutting system
Multi tray automatic movable system is valuable to increase productivity with three different working stations for loading, unloading and internal cutting area. The side linear belts movement allow to transfer automatically the outside area stainless steel tray to the central working area, while the central one after cut is moved outward automatically enabling the operator to easily unload the cut food product.
Applications
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.
E-MAGNIFICA Details
Multi tray automatic movable system.
Fast and simple loading/unloading processes.

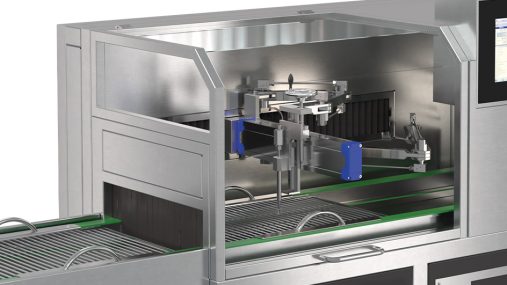

Working tray area
Touch screen CNC display

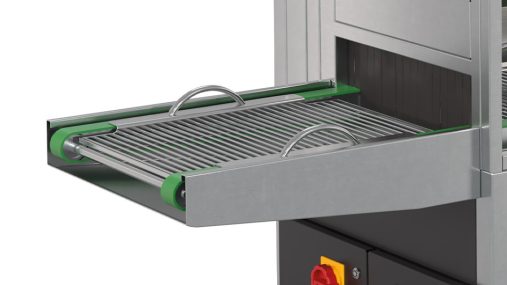

Unloading tray area

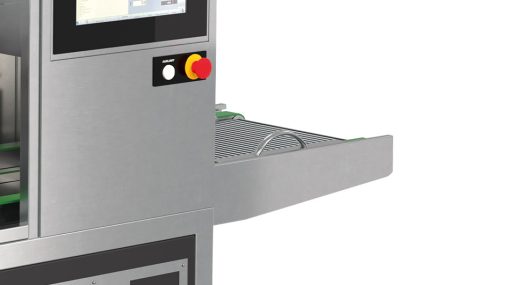

Loading tray area

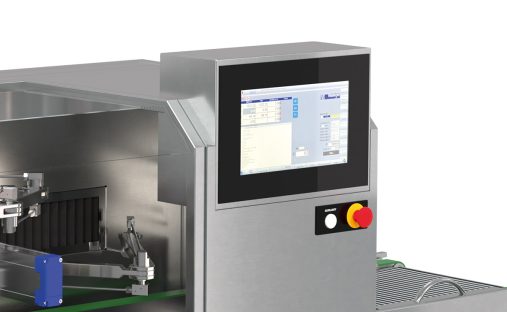

CNC, programming and diagnostic touch screen display
Discover detailsFeatures
| E-MAGNIFICA | |
|---|---|
| Machine dimension | 3280 x 1050 x h 1800mm (130" x 42" x h 71") |
| Net Working Travel Area | 600 x 400 x h 100 mm (24" x 16" x h 6") |
| Integrated Hybrid Servo Intensifier Pump Energy Saving | 5 kW |
| Water Consumption | 0,3 ÷ 1 lt/min (0,075 ÷ 0,25 gal/mm) |
| Orifice Size Diametr | 0,1 ÷ 0,2 mm (0,004" ÷ 0,008") |
| Working pressure | Fino a 4.000 Bar Up to 60 Kpsi |
| Oil Tank | 10 lt (2,5 gal) |
| Cutting speed | 8 cm/sec (3"/sec) |
