Hydro decorative system
The equipment is able to texture all stone materials by water only.
Request information
Download brochure
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.
HYDRODECORATIVE Details
Rotating, straight nozzle body for even finishing or decorating of shapes.
Electrical direct driven high pressure pump up to 2.500 Bar (36.000 Psi).
Opt 1:
45 kw with 12 lt/min (3 gal/min)

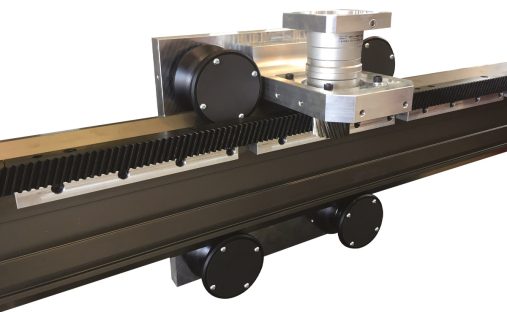

NC Gantry Bridge Technology with Integrated Tank, Helical Rack & Pignon transmission, self lubricating system and Direct Driven HP Pump for water only surface texturing process.
Features
| WHF 510 | |
|---|---|
| Net Cutting Area | X = 1.650 mm (5' 1/2) Y = 3.400 mm (11') Z = 180 mm (7") |
| Inner Table Working Area | 3.800 mm x 1.800 mm (12' x 6') |
| Overall Dimensions | 4.000 mm x 2.300 x h 1.800 mm (13' x 8' x h 6') |
| Rapid Speed | 0-12 mt / min (0 - 40' / min) |
| Weight | 2.000 Kg (5.000 lb) |
| Positioning Accuracy | ± 0,1 mm (± 0,004") |
| Repeatability | ± 0,075 mm (± 0,003") |
| Ball Bar Ø 300 mm (12”) | ± 0,01 mm (± 0,004") |
