E-WATERLINE

Waterjet entry level machine

Compact Waterjet Cutting System

  • Integrated Steel Tank with Gantry Bridge Technology.
  • 3-4-5 axis NC.
  • Helical Rack & Pinion motion system with automatic lubricating system.
  • For simple processing and pure waterjet cutting.
Request information Download brochure

E-WATERLINE Details

3 axis Gantry Bridge Technology

3 axis Gantry Bridge Technology with Integrated Tank and Helical Rack & Pinion motion system with automatic lubricating system

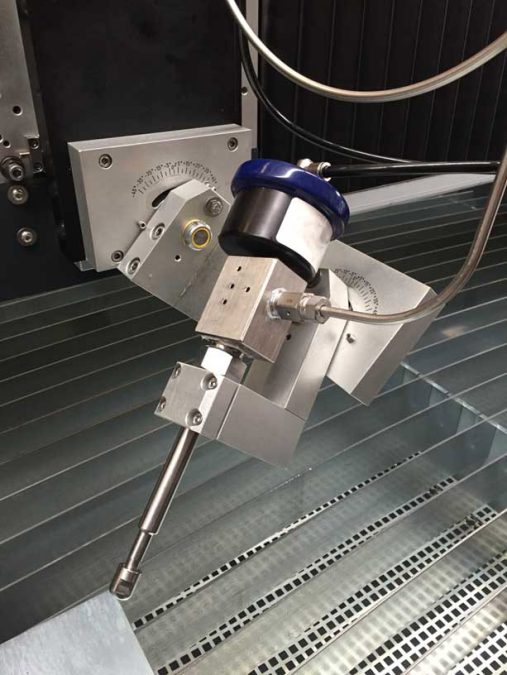

DOUBLE MANUAL INDEXER

Double manual indexer ± 45

The indexer permits to incline manually the cutting head up to ± 45° in order to perform bevel cut in both X-Y direction.

software cad

Software CAD-CAM

Discover details
quality control

Quality Control

Discover details

Waterjet machines guarantee in italy precise cold cutting on a variety of materials, including metal, glass, stone, composites and insulating materials.

  • Exceptional versatility and cutting precision
    Minimum waste of processed material and significant reduction in production time and costs thus eliminating finishing steps after the cutting stage.
  • User-friendly
    The programming operations are very simple. You can select and start the custom work program for any material or thickness with just a few clicks.
  • Versatility
    The machines that we produce allow any shape, size or material to be cut, up to a maximum thickness of 300 mm. Since this is a cold cutting process, no mechanical or thermal deformations occur in the processed material, which is very important in the case of state-of-the-art materials.
  • Eco-sustainability
    We have adopted efficient production processes and responsible resource management to cut down on waste. We invest in environmentally friendly technology and involve our employees in sustainable initiatives that are the key to building an environmentally advanced business model.

Features

WL 510
Net Cutting AreaX = 1.650 mm (5' 1/2)
Y = 3.400 mm (11')
Z = 200 mm (8")
Inner Table Working Area3.800 mm x 1.800 mm
(12' x 6')
Overall Dimensions4.000 mm x 2.300 x h 1.800 mm
(13' x 8' x h 6')
Rapid Speed0-20 mt / min
(0 - 67' / min)
Weight2.000 Kg
(5.000 lb)
Total Positioning Accuracy / Full Length± 0.1 mm
(± 0,004")
Repeatability± 0.05 mm
(± 0,002")
Ball Bar Ø 300 mm (12”)± 0.1 mm
(± 0,004")
STANDARD AVAILABLE MODELS
WL 44: 1.250 x 1.250 mm (4' x 4')
WL 510: 3.400 x 1.650 mm (11' x 5' 1/2)
WL 612: 4.000 x 2.000 mm (13' x 6' 1/2)
