E-SUPREMA DXD

Special customized machines single or double gantry bridge, with multiple heads and multiple combined technologies

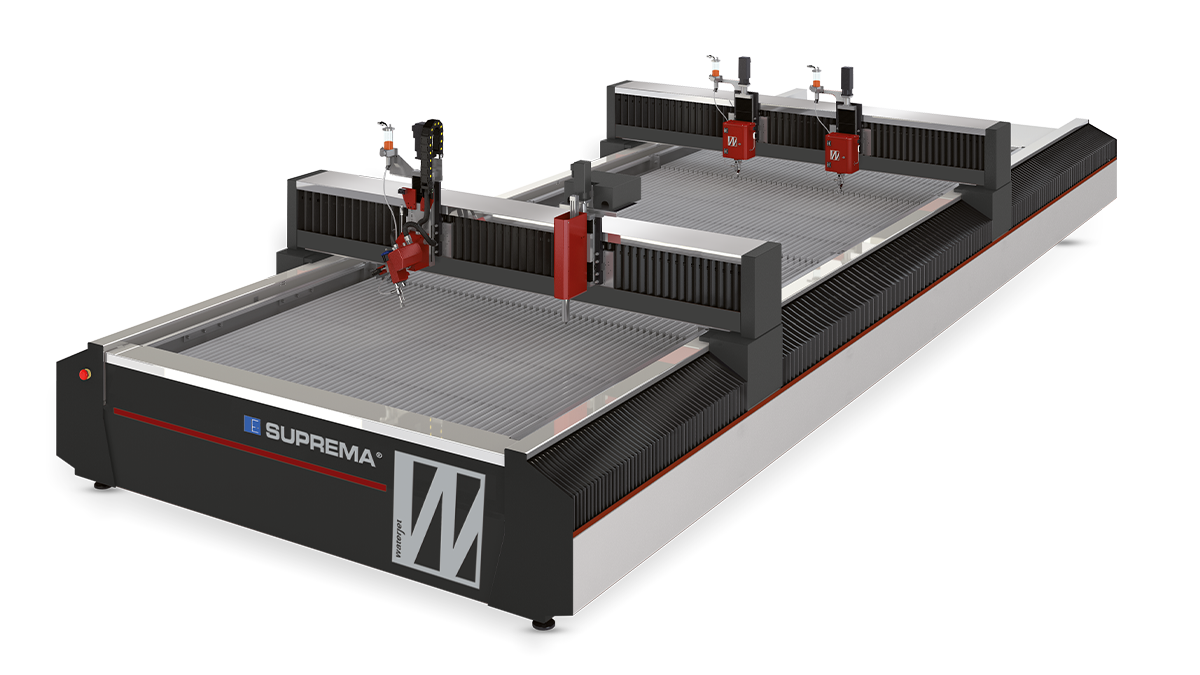

Multi technologies double gantry bridge

SPECIAL CUSTOMIZED MACHINES:
Single or Double Gantry Bridge, with multiple heads and multiple combined technologies

Request information Download brochure

E-SUPREMA Details

5 Axis Waterjet And Plasmajet Heads

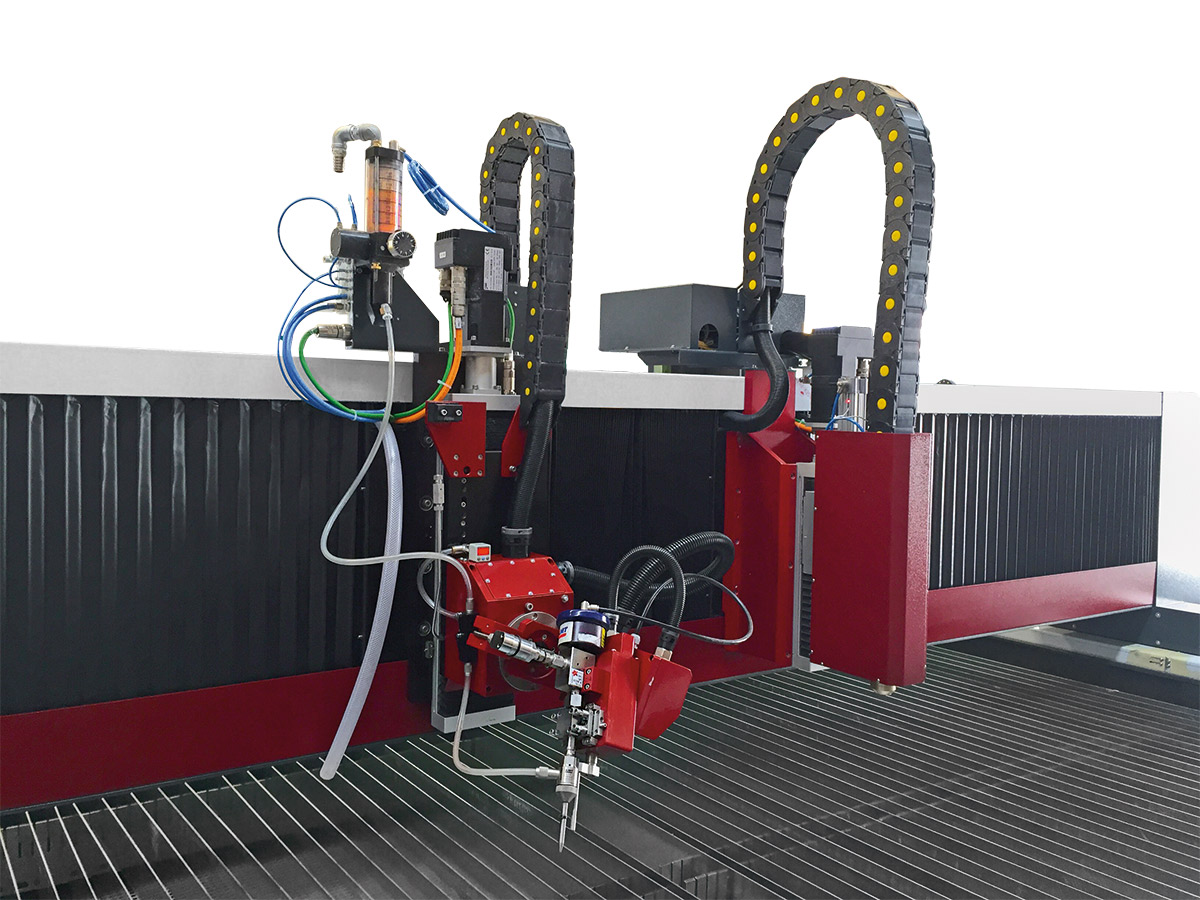

5 Axis waterjet and plasmajet heads (option)

Double independent motorized Axis for Waterjet or Plasmajet

software cad

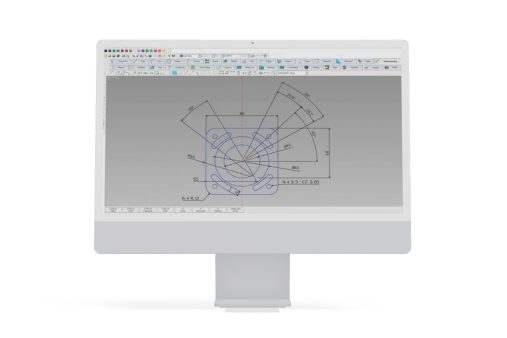

Software CAD-CAM

Discover details
quality control

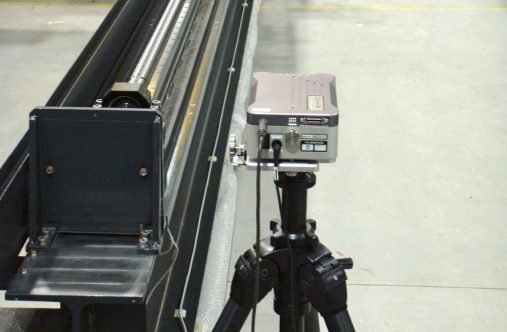

Quality Control

Discover details

Waterjet machines guarantee in italy precise cold cutting on a variety of materials, including metal, glass, stone, composites and insulating materials.

  • Exceptional versatility and cutting precision
    Minimum waste of processed material and significant reduction in production time and costs thus eliminating finishing steps after the cutting stage.
  • User-friendly
    The programming operations are very simple. You can select and start the custom work program for any material or thickness with just a few clicks.
  • Versatility
    The machines that we produce allow any shape, size or material to be cut, up to a maximum thickness of 300 mm. Since this is a cold cutting process, no mechanical or thermal deformations occur in the processed material, which is very important in the case of state-of-the-art materials.
  • Eco-sustainability
    We have adopted efficient production processes and responsible resource management to cut down on waste. We invest in environmentally friendly technology and involve our employees in sustainable initiatives that are the key to building an environmentally advanced business model.

Features

DXD 1340
Net Cutting AreaX = 4.000 mm (13')
Y = 12.200 mm (40')
Z = 200 mm (8")
Inner Table Working Area4.500 mm x 12.800 mm
(15' x 42')
Overall Dimensions5.700 mm x 15.000 x h 2.100 mm
(18' x 50' x h 7')
Rapid Speed0-30 mt / min
(0 - 100' / min)
Weight12.000 Kg
(26.000 lb)
Total Positioning Accuracy / Full Length± 0,08 mm
(± 0,003")
Repeatability± 0,05 mm
(± 0,002")
Ball Bar Ø 300 mm (12”)± 0,08 mm
(± 0,003")
