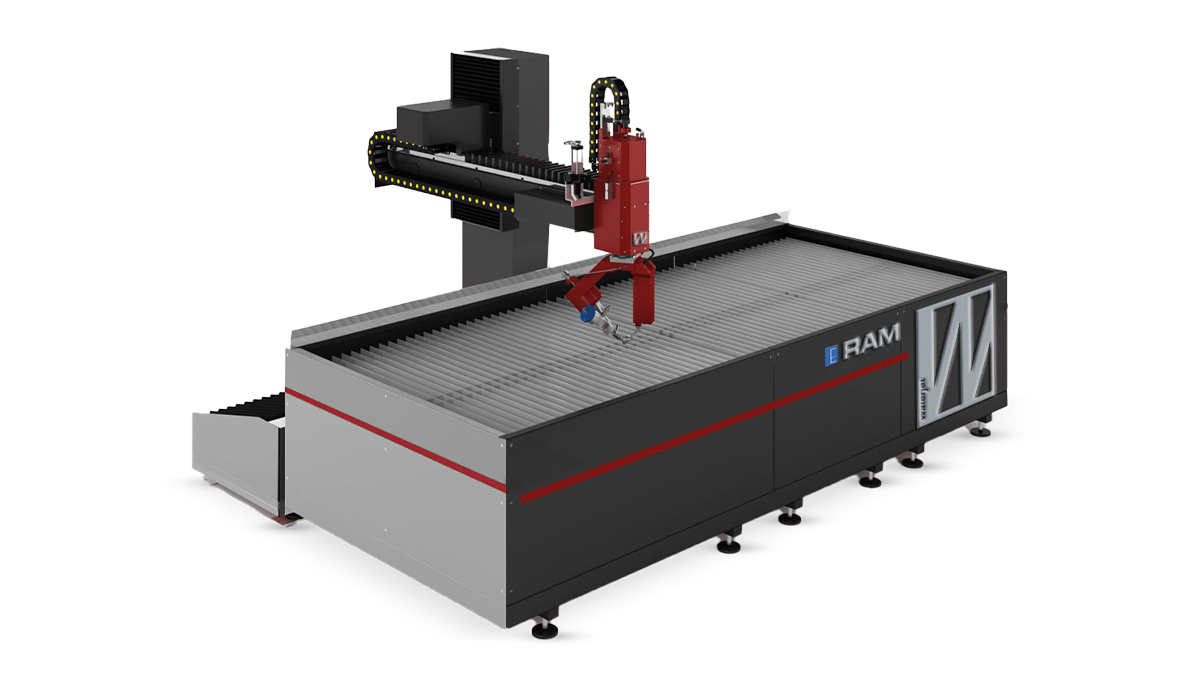

Modular RAM waterjet travel extendable machine
High bridge cantilever Waterjet Cutting System
- Separate tank suitable to cut all standard and special materials
- Flying bridge Modular Technology
- 3D 5 axis system with extendable Z axis up to 1 mt (40”) high which allows to position on the working tank large parts
- Maximum sealing protection of the bearings and LM guides
- Maximum accessibility 4 sides open area
- For large and bulky materials
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.
E-RAM Details

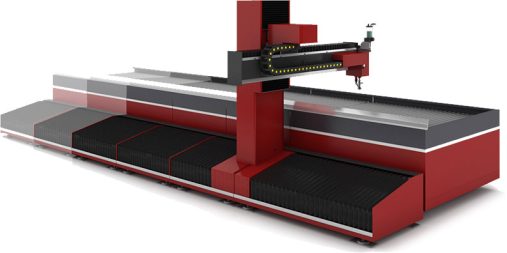

Waterjet RAM 520 Modular
Modular extendable waterjet Flying bridge technology: Modular Technology with mobile cantilever bridge and separated tank with double work benches to reduce time during the loading/unloading operations.

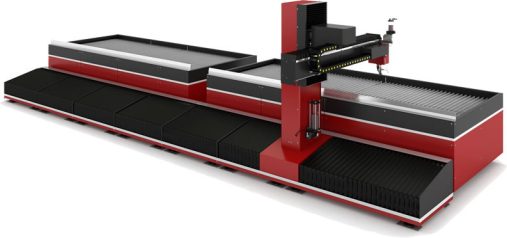

Waterjet RAM 520 Double Tanks
Modular extendeble waterjet Flying bridge technology with double tables to save downtime due to load/unload materials handling.

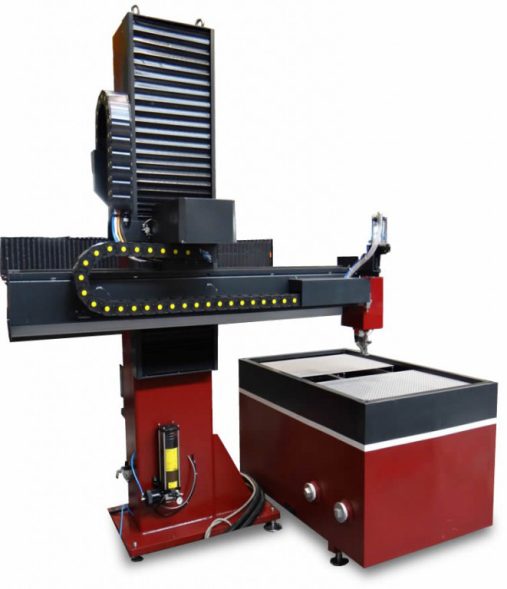

Waterjet RAM Tube 35
Special cantilever system RAM customized for special application with large overall and thickness material dimensions.
Z axis travel : 800 mm
X axis travel : 1.500 mm
Accurate elical ALPHA WITTESTEIN rack and pinion transmission with centralized auto lubricating system for all preloaded bearing and pinions.
Software CAD-CAM
Discover details
Quality Control
Discover details

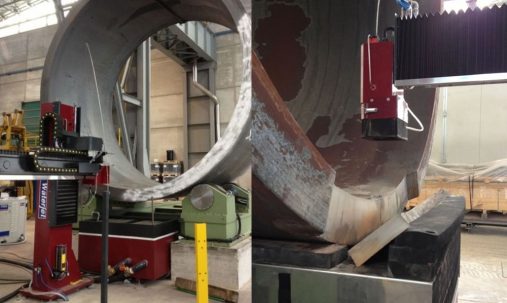

Steel tube cutting application from Ø 4 to 8 mt (13'-26') diameter and from 170 to 300 (7''-12'') mm thickness
CNC & HMI
Discover detailsWaterjet machines guarantee in italy precise cold cutting on a variety of materials, including metal, glass, stone, composites and insulating materials.
-
Exceptional versatility and cutting precision
Minimum waste of processed material and significant reduction in production time and costs thus eliminating finishing steps after the cutting stage.
-
User-friendly
The programming operations are very simple. You can select and start the custom work program for any material or thickness with just a few clicks.
-
Versatility
The machines that we produce allow any shape, size or material to be cut, up to a maximum thickness of 300 mm. Since this is a cold cutting process, no mechanical or thermal deformations occur in the processed material, which is very important in the case of state-of-the-art materials.
-
Eco-sustainability
We have adopted efficient production processes and responsible resource management to cut down on waste. We invest in environmentally friendly technology and involve our employees in sustainable initiatives that are the key to building an environmentally advanced business model.
