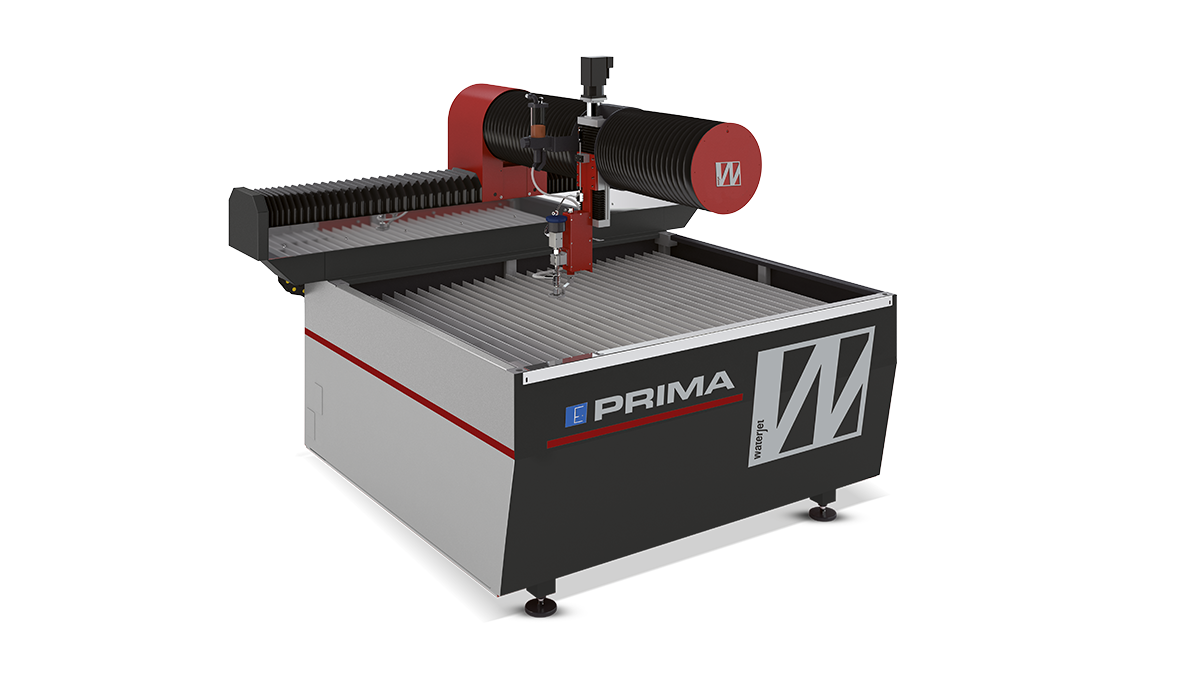

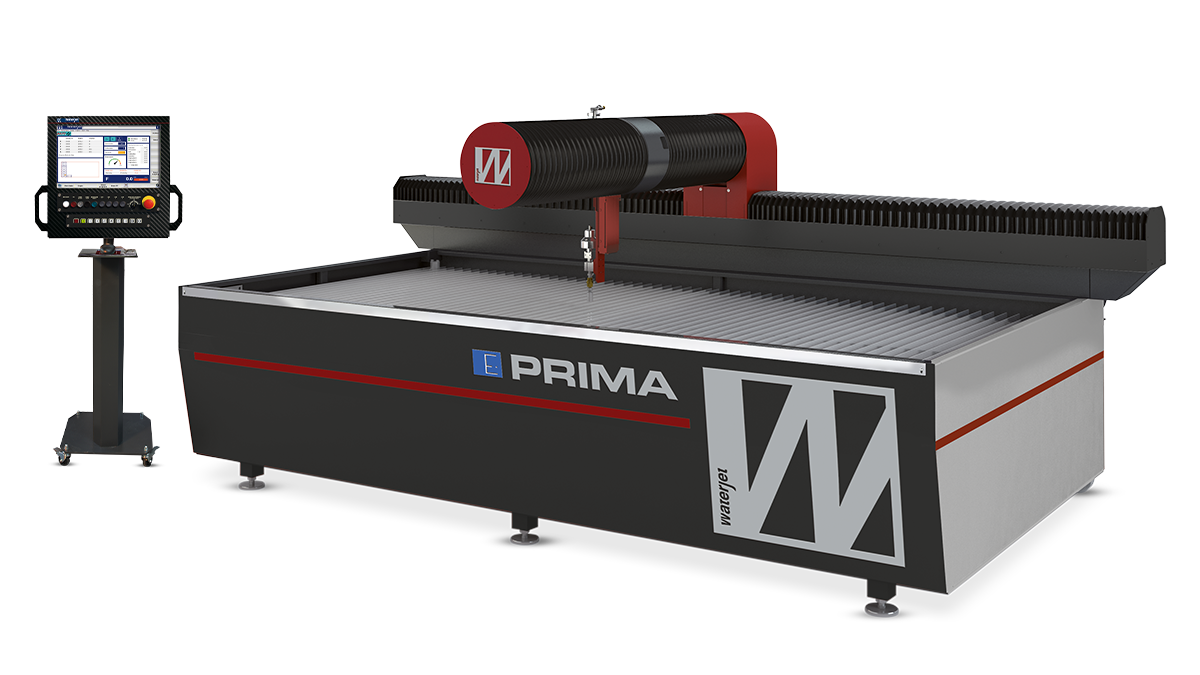

Flying bridge 3 axis waterjet machine with integrated steel tank.
Plug & Play cantilever waterjet cutting system.
- Integrated steel tank.
- The Flying Bridge technology allows easy loading/unloading of materials on the three free sides.
- Rack and pinion motion system with automatic lubrication.
- 3 axis NC
- Integrated electrical cabinet.
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.
E-PRIMA Details

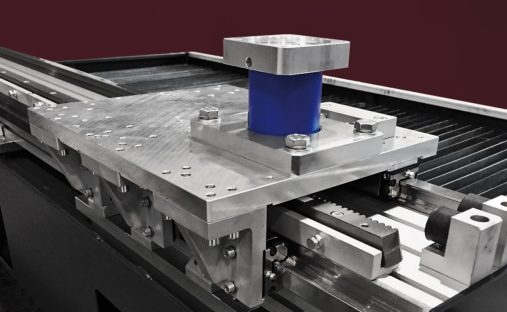

"Flying Bridge" technology with Integrated Tank
3 axis NC Flying Bridge technology with Integrated Tank, integrated electrical cabinet, rack and pinion motion system with automatic lubrication

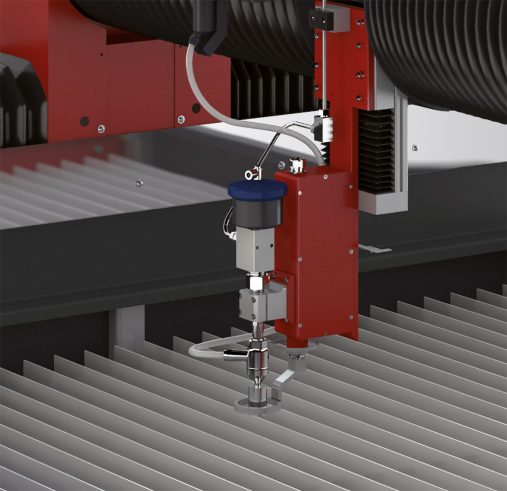

Touch Probe Sensor with Anti-collision Device
(optional)
Software CAD-CAM
Discover details
Quality Control
Discover details
CNC & HMI
Discover detailsWaterjet machines guarantee in italy precise cold cutting on a variety of materials, including metal, glass, stone, composites and insulating materials.
-
Exceptional versatility and cutting precision
Minimum waste of processed material and significant reduction in production time and costs thus eliminating finishing steps after the cutting stage.
-
User-friendly
The programming operations are very simple. You can select and start the custom work program for any material or thickness with just a few clicks.
-
Versatility
The machines that we produce allow any shape, size or material to be cut, up to a maximum thickness of 300 mm. Since this is a cold cutting process, no mechanical or thermal deformations occur in the processed material, which is very important in the case of state-of-the-art materials.
-
Eco-sustainability
We have adopted efficient production processes and responsible resource management to cut down on waste. We invest in environmentally friendly technology and involve our employees in sustainable initiatives that are the key to building an environmentally advanced business model.
Features
Discover all the technical features of our most innovative waterjet cutting solution on the market.
| LT 510 | |
|---|---|
| Net Cutting Area | X = 3.400 mm (11') Y = 1.650 mm (5' 1/2) Z = 200 mm (8") |
| Inner Table Working Area | 3.800 mm x 1.800 mm (12' x 6') |
| Overall Dimensions | 4.000 mm x 2.300 mm x h 1.800 mm (13' x 7' 1/2 x h 6') |
| Rapid Speed | 0-10 mt / min (0 - 33' / min) |
| Weight | 2.500 Kg (5.500 lb) |
| Total Positioning Accuracy / Full Length | ± 0,1 mm (± 0,004") |
| Repeatability | ± 0,05 mm (± 0,002") |
| Ball Bar Ø 300 mm (12”) | ± 0,1 mm(± 0,004") |
LT 510: 3.400 x 1.650 mm 11' x 5' 1/2
LT 612: 4.000 x 1.650 mm 13' x 5' 1/2
