Lying bridge 3 axis waterjet machine with separate steel tank
Accurate Waterjet Flying Bridge System
- Separate steel tank
- Reinforced Flying Bridge system that allows easy loading / unloading of materials on the three free sides.
- Ball screws motion system with automatic lubrication.
- 3 axes NC.
- Integrated electrical cabinet.
- Combinable with a wide choice of optional accessories (e.g. rotating bridge, loading / unloading system, etc.)
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.

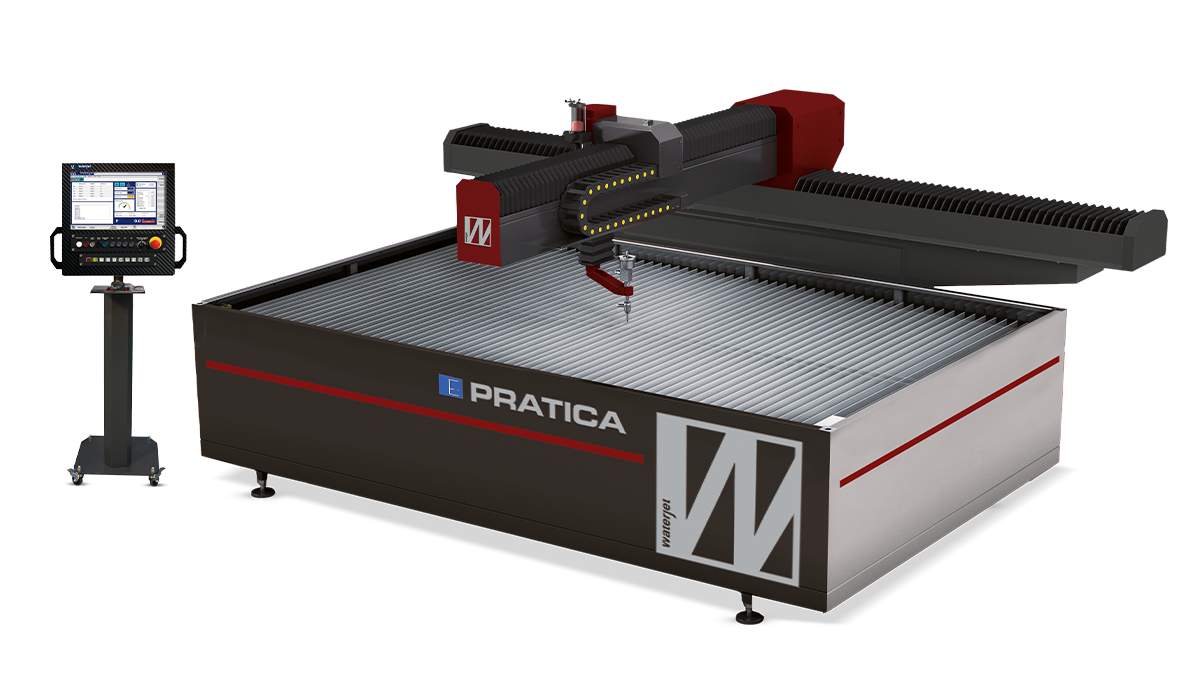

E-PRATICA Details

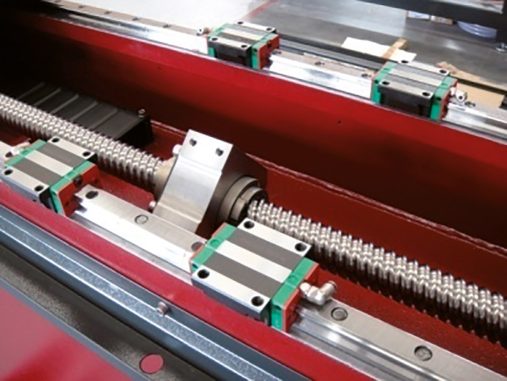

Flying Bridge system
with integrated electrical cabinet, separate tank, ball screws motion system with automatic lubrication.

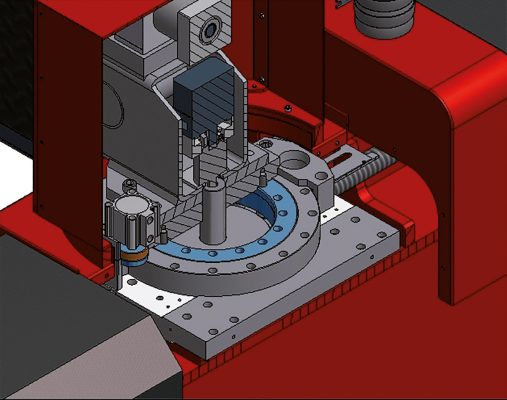

Revolving system
Double Table with automatic revolving Flying Bridge system which allows an easy and safe material loading and offloading without any interruption of the cutting process.
Software CAD-CAM
Discover details
Quality Control
Discover details
CNC & HMI
Discover detailsWaterjet machines guarantee in italy precise cold cutting on a variety of materials, including metal, glass, stone, composites and insulating materials.
-
Exceptional versatility and cutting precision
Minimum waste of processed material and significant reduction in production time and costs thus eliminating finishing steps after the cutting stage.
-
User-friendly
The programming operations are very simple. You can select and start the custom work program for any material or thickness with just a few clicks.
-
Versatility
The machines that we produce allow any shape, size or material to be cut, up to a maximum thickness of 300 mm. Since this is a cold cutting process, no mechanical or thermal deformations occur in the processed material, which is very important in the case of state-of-the-art materials.
-
Eco-sustainability
We have adopted efficient production processes and responsible resource management to cut down on waste. We invest in environmentally friendly technology and involve our employees in sustainable initiatives that are the key to building an environmentally advanced business model.
Features
| FB 510 | |
|---|---|
| Net Cutting Area | X = 3.000 mm (10') Y = 2.000 mm (6' 1/2) Z = 200 mm (8") |
| Inner Table Working Area | 3.650 mm x 2.240 mm (12' x 7' 1/2) |
| Overall Dimensions | 4.200 mm x 3.000 mm x h 1.800 mm (14' x 10' x h 6' 1/2) |
| Rapid Speed | 0 - 12 mt / min (0 - 40' / min) |
| Weight | 3.000 Kg (7.500 lb) |
| Total Positioning Accuracy / Full Length | ± 0,075 mm (± 0,004") |
| Repeatability | ± 0,05 mm (± 0,002") |
| Ball Bar Ø 300 mm (12”) | ± 0,075 mm (± 0,003") |
FB 612: 4.000 x 2.000 mm (13' x 6' 1/2)
FB 812: 4.000 x 2.500 mm (13' x 8')
FB 620: 6.100 x 2.000 mm (20' x 6' 1/2)
FB 820: 6.100 x 2.500 mm (20' x 8')
For any information, please contact us.
If you didn't find what you were looking for while browsing, or if you have any requests to submit to us, do not hesitate to contact us by filling in the form. We will answer you soon.
* Required fields
