Gantry 3-4-5 axis Machine with integrated stainless steel tank
Gantry Waterjet Cutting System
- Stainless steel tank.
- 3-4-5 axis CNC.
- Reinforced gantry technology.

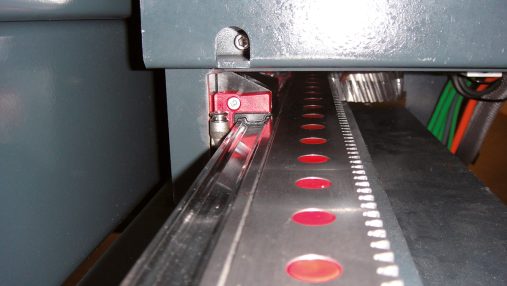

- Helical rack and pinion motion system and automatic lubrication.
- Possibility of increasing productivity by adding cutting heads.
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.

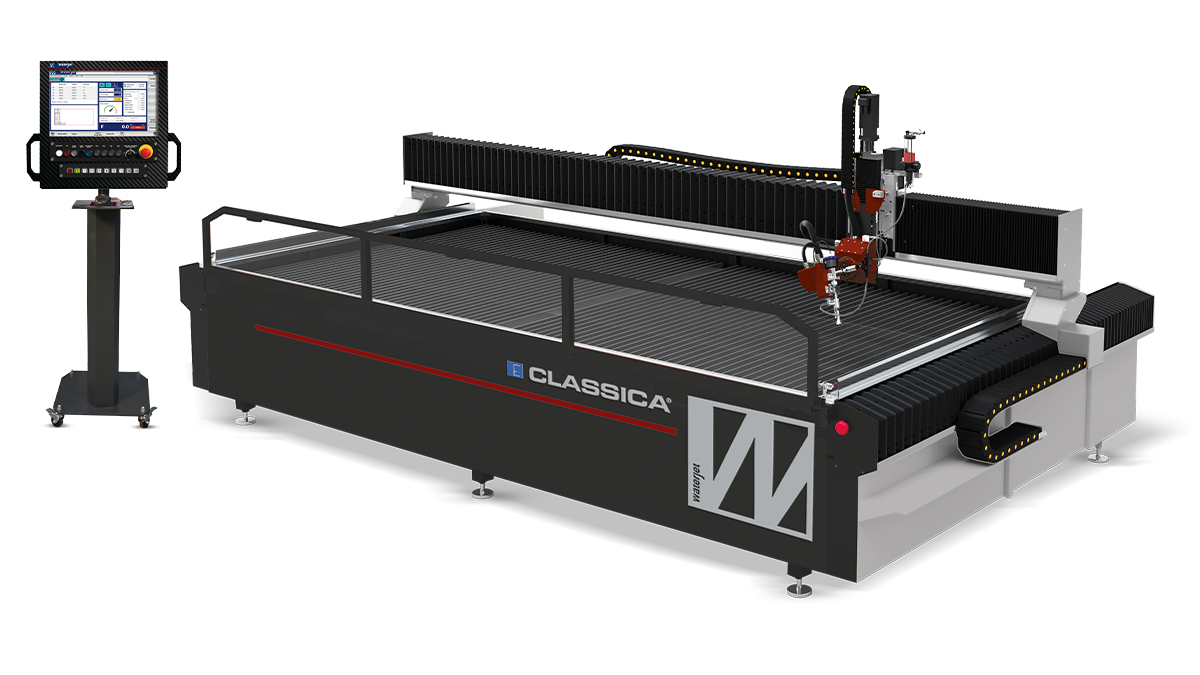

E-CLASSICA Details
3-4-5 axis CNC gantry technology with stainless steel tank, helical rack and pinion motion system and automatic lubrication.
EDGE

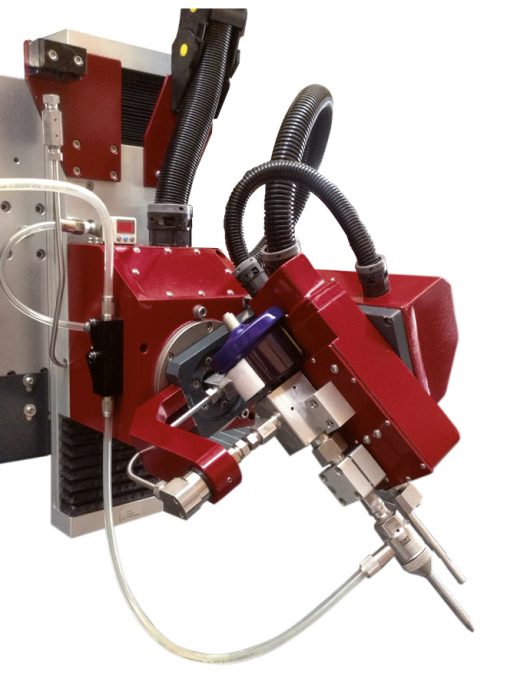

5 ± 55° with I.T.C. (Intelligent Tapering Control) technology and exclusive Touch WaveTM sensor for accurate continuous position calibration.

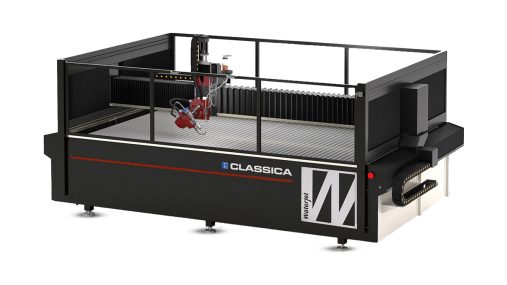

Full Enclosure Protection
optional
Software CAD-CAM
Discover details
Quality Control
Discover details
CNC & HMI
Discover detailsWaterjet machines guarantee in italy precise cold cutting on a variety of materials, including metal, glass, stone, composites and insulating materials.
-
Exceptional versatility and cutting precision
Minimum waste of processed material and significant reduction in production time and costs thus eliminating finishing steps after the cutting stage.
-
User-friendly
The programming operations are very simple. You can select and start the custom work program for any material or thickness with just a few clicks.
-
Versatility
The machines that we produce allow any shape, size or material to be cut, up to a maximum thickness of 300 mm. Since this is a cold cutting process, no mechanical or thermal deformations occur in the processed material, which is very important in the case of state-of-the-art materials.
-
Eco-sustainability
We have adopted efficient production processes and responsible resource management to cut down on waste. We invest in environmentally friendly technology and involve our employees in sustainable initiatives that are the key to building an environmentally advanced business model.
Features
| CL 510 | |
|---|---|
| Net Cutting Area | X = 3.400 mm (11') Y = 1.800 mm (6') Z = 200 mm (8") |
| Inner Table Working Area | 3.675 mm x 2.100 mm (12' x 7') |
| Overall Dimensions | 4.500 mm x 2.300 x h 1.800 mm (15' x 7' 1/2 x h 6' 1/2) |
| Rapid Speed | 0-30 mt / min (0 - 100' / min) |
| Weight | 3.000 Kg (6.700 lb) |
| Total Positioning Accuracy / Full Length | ± 0,075 mm (± 0,003") |
| Repeatability | ± 0,05 mm (± 0,002") |
| Ball Bar Ø 300 mm (12”) | ± 0,075 mm (± 0,003") |
CL 56: 2.000 x 1.500 mm (5' x 6' 1/2)
CL 510: 3.400 x 1.800 mm (11' x 6')
CL 610: 3.400 x 2.000 mm (11' x 6' 1/2)
CL 612: 4.000 x 2.000 mm (13' x 6' 1/2)
CL 620: 6.100 x 2.000 mm (20' x 6' 1/2)
