Chef Line range: for cutting fresh and frozen food products
DELICIA: for your most beautiful desserts
Replaceable single tray system with a synchronized interpolated catcher for water and material cut collection. The interpolated cantilever bridge cutting system accurately follows designs easily programmed directly on the touch screen CNC operator panel using ready parametric and nesting function, or importing images, fonts, designs by DXF or DWG to customize infinitely own art cutting job and finished food products.
The innovative patented energy saving hybrid compact servo intensifier pump system is positioned below the cutting area and operates up to 4000 Bar (60 KPSI) in the most and greenest mode to guarantee the highest enviroment protection.
Applications
E-DELICIA Details
Replaceable single tray system.
Compact, easy to program.
Openable transparent panel door

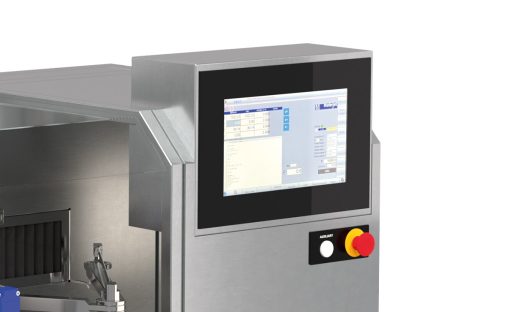

Touch screen CNC display
Integrated compact hybrid HP servo pump
Working cutting area
600 x 400 mm
750 x 450 mm (Optional)
CNC, programming and diagnostic touch screen display
Discover detailsFeatures
| E-DELICIA | |
|---|---|
| Machine dimension | 1530 x 990 x h 1670mm (61" x 39" x h 66") |
| Net Working Travel Area | 600 x 400 x h 100 mm (24" x 16" x h 6") |
| Integrated Hybrid Servo Intensifier Pump Energy Saving | 5 kW |
| Water Consumption | 0,3 ÷ 1 lt/min (0,075 ÷ 0,25 gal/mm) |
| Orifice Size Diametr | 0,1 ÷ 0,2 mm (0,004" ÷ 0,008") |
| Working pressure | Fino a 4.000 Bar Up to 60 Kpsi |
| Oil Tank | 10 lt (2,5 gal) |
| Cutting speed | 8 cm/sec (3"/sec) |
