Waterjet designs customized systems
Customized waterjet machines
Engineering and manufacture of standard, special and customized machines suited to the needs of our customers is our distinctive feature.
- Our systems can reach up to 12,000 mm
- Be designed with single or double gantry bridges
- Having multiple heads
- Be combined with multiple technologies
Download brochure
Per poter scaricare la brochure occorre inserire i dati richiesti nel seguente modulo. Riceverai un'email contenente il link al PDF.
Custom Large Machine Details

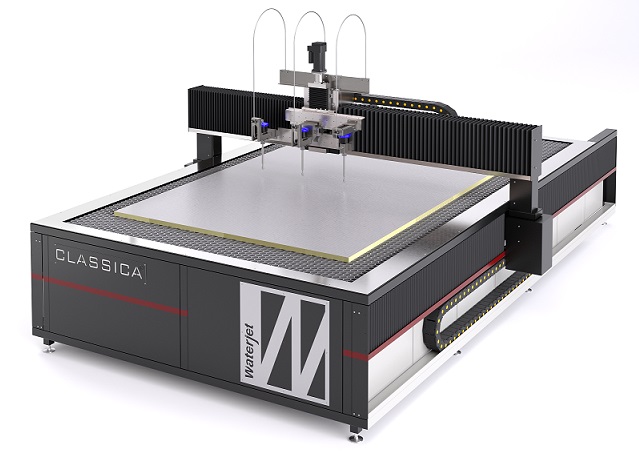

CLASSICA CL 712
Special high productivity water cutting machine by multiple heads with an automatic motorized CNC interaxis and with a stainless steel honeycomb table.
Dimension
from 5’ x 10’
up to 8’ x 10’
Rapid Speed
131’ / min
Positioning Accuracy Full Length
+-0.003 “

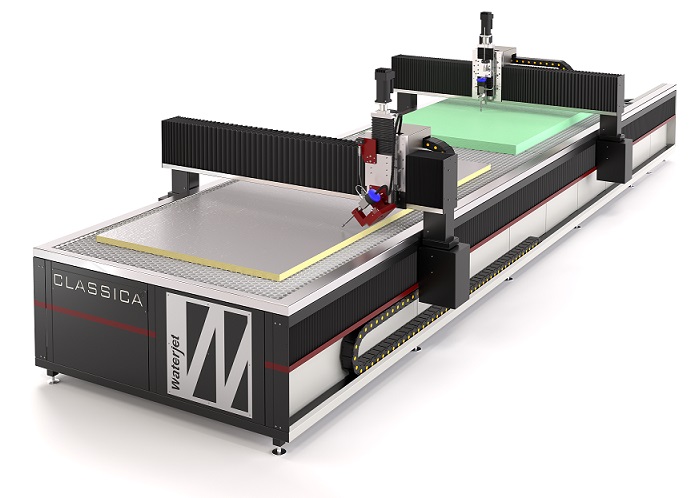

CLASSICA TANDEM CL 520
Special high productivity water cutting machine by multiple heads with an automatic motorized CNC interaxis and with a stainless steel honeycomb table.
Dimension
from 5’ x 10’
up to 8’ x 20’
Rapid Speed
131’ / min
Positioning Accuracy Full Length
+-0.003 “

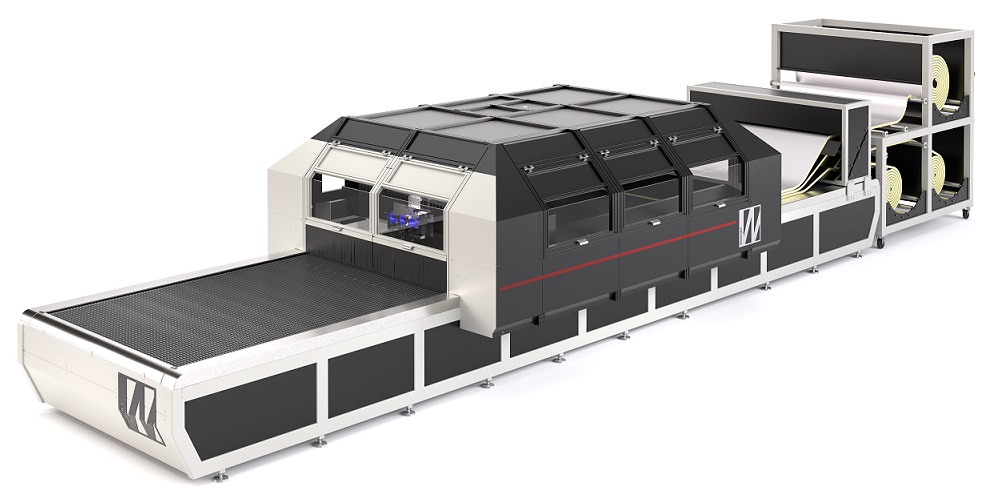

CLASSICA ROLLJET RJ 810
Special high productivity machine with loading and unloading area and soundproofing cabin for waterjet cutting by multiple heads too, materials in panels or rolls carried out and coupled to multilayer by a system of motorized automatic drag cylinders.
Cutting Area Dimensions
6’ 1/2 x 10’
Rapid Speed
131’ / min
Positioning Accuracy Full Length
+-0.003 “
Gantry system customization: 5-axis Waterjet and 3-axis Plasmajet heads (optional)
Double independent motorized axis for Waterjet or Plasmajet
Software CAD-CAM
Discover details
Quality Control
Discover details
CNC & HMI
Discover detailsWaterjet machines guarantee in italy precise cold cutting on a variety of materials, including metal, glass, stone, composites and insulating materials.
-
Exceptional versatility and cutting precision
Minimum waste of processed material and significant reduction in production time and costs thus eliminating finishing steps after the cutting stage.
-
User-friendly
The programming operations are very simple. You can select and start the custom work program for any material or thickness with just a few clicks.
-
Versatility
The machines that we produce allow any shape, size or material to be cut, up to a maximum thickness of 300 mm. Since this is a cold cutting process, no mechanical or thermal deformations occur in the processed material, which is very important in the case of state-of-the-art materials.
-
Eco-sustainability
We have adopted efficient production processes and responsible resource management to cut down on waste. We invest in environmentally friendly technology and involve our employees in sustainable initiatives that are the key to building an environmentally advanced business model.
